Foam CNC Router
Foam CNC Router

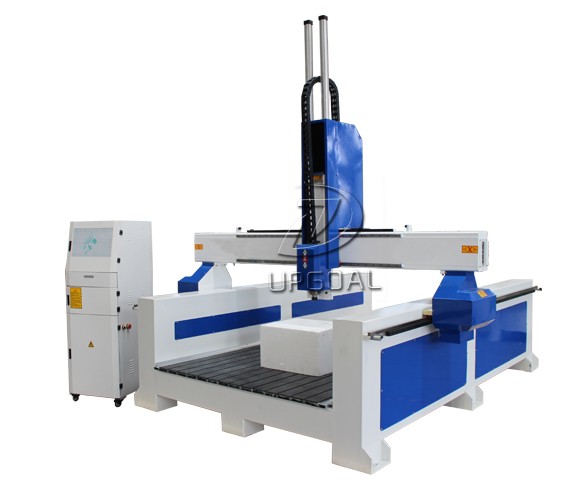

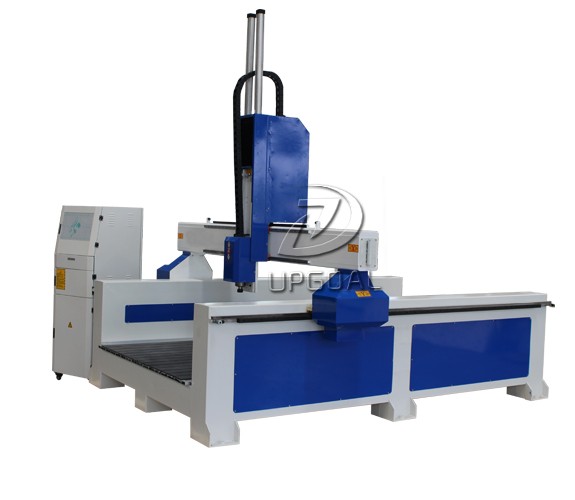

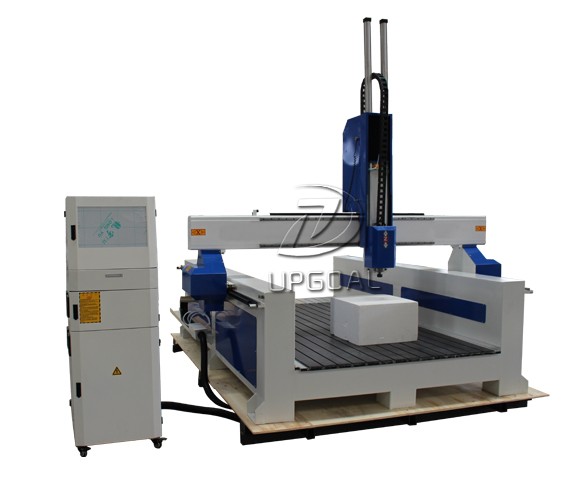

Economic CNC Foam Engraving Machine 1300*2500*700mm

Brief Introduction:

Model: UG-1325F
1300*2500*700mm
700mm Z-axis height
3.5kw HQD air cooling spindle
PCI NcStudio control system

INQUIRY NOW

Applications

Foam mold, oodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


Features

1.Welded thickness steel tube tructure as a whole with vibration Temper aging treatment ensures no deformation for long time.

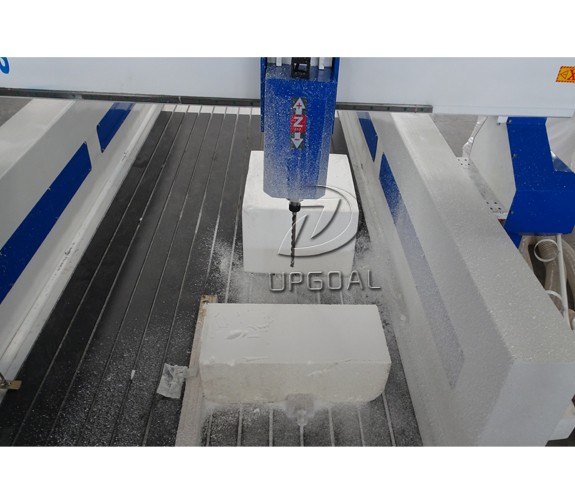

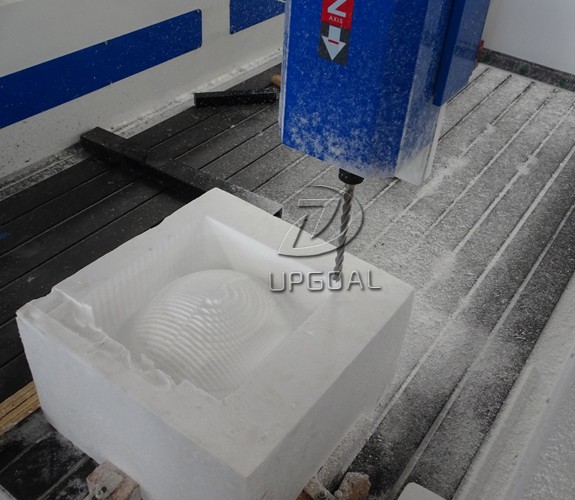

2.Specially designed stable High 700 Z-axis feeding height, more more thickness materials engraving & cutting.

3. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision lead ball screws, tools feeded with more accuracy.

4. Large power 3.5kw China HQD air cooling spindle which is with stable performance and high torque, matched with high-performance Frequency Inverter.

5. Powerful stepper motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

6. Helical gears pinion with racks type transmission for X and Y axis, higher running speed and efficiency,saving cost. Z- axis with precision ball screw, high precision and more durable.

7.PCI NcStudio control system, enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

8. Indepedent computer cabinet, keeps computer cleaning during working.
9. With air cylinder for Z-axis, ensuring  no bits dropping during long time working.

10. Auto tools calibration for Z-axis

11 Semi-auto lubrication system more convenient for maintenance.

12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of break-point memory,power failure resuming and automatic home/origin correction , effectively ensure long time working precision.


Effective working area

1300(X)mm*2500(Y)mm*700(Z)mm

Materials

More thickness steel pipe welded machine holder bed, cast iron gantry

Working table

Aluminum T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Stepper motor and driver

Spindle motor

3.5KW China HQD air cooling

Spindle speed

0-18000rpm

Inverter

Sunfar

Voltage

AC 380V± 10%, 50/60Hz, three phases or

AC 220V± 10%, 50/60Hz, single or

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.03mm

Control system

PCI NcStudio

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Tool calibration

Auto

Certificate

CE
